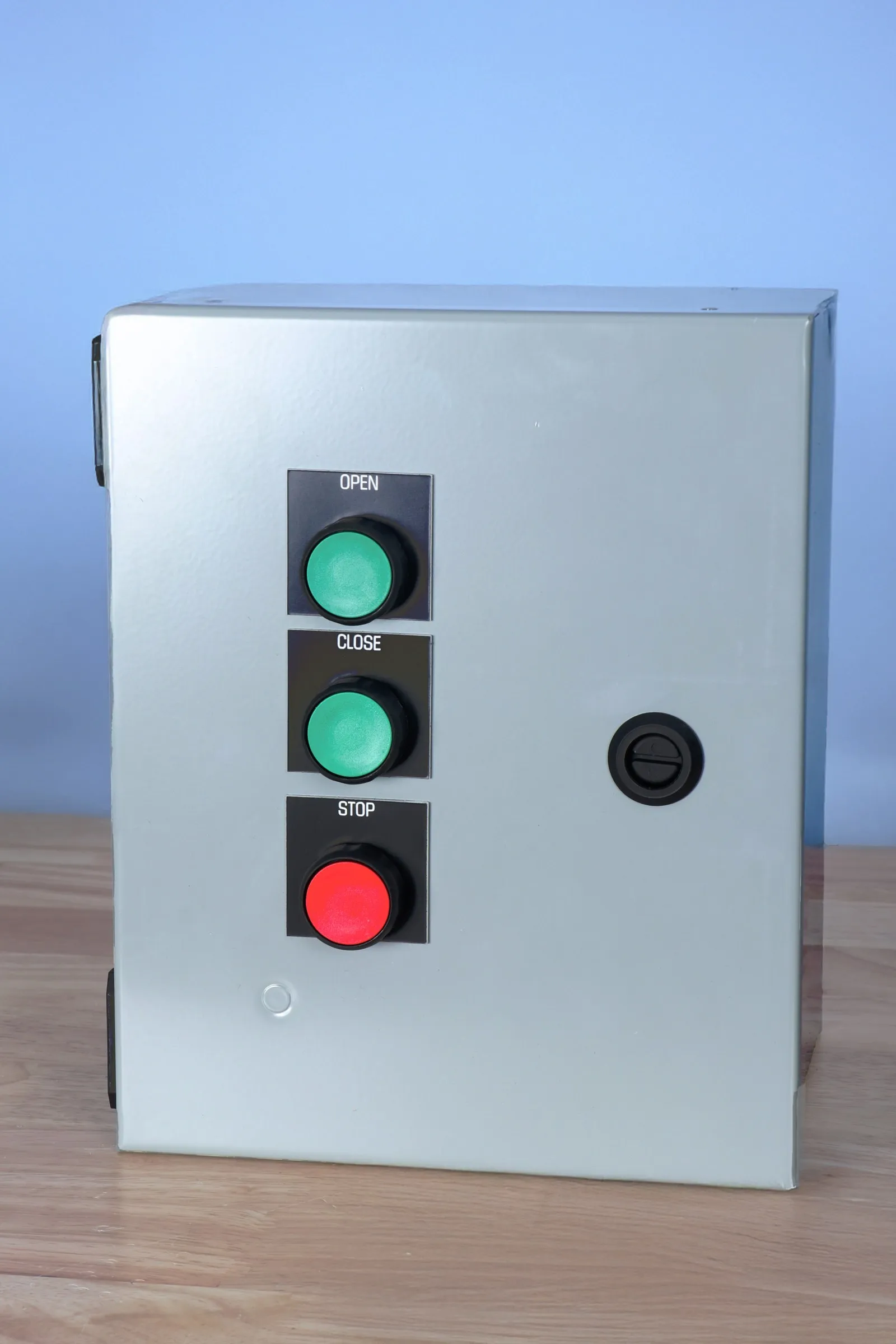

Motor Control Panel
Custom motor control panels for single- or dual-motor equipment, built around your motor data, field devices, operator controls, and service needs.
Configuration optionsDesign · Build · Bench-test
Custom Automation Control Panels, Designed and Built to Order
We design and manufacture small-batch control systems for any application — engineered around your equipment, wiring, and service requirements, then built and bench-tested in our Connecticut shop.
Smart Engineering Solutions
TitleGeneral arrangement
Sheet1 of 22
RevB
DrawnSES
ScaleNTS
Date2026-10-27
Designed to order
Engineered for the application, not picked from a catalog
Every system starts with your equipment: motor data, field devices, operating environment, and how people will run and service it. We design the control scheme, build it in small batches, and bench-test it before it ships — whether you need one panel or a recurring OEM build.
- 01 Application review Motor data, field devices, environment, and operating sequence.
- 02 Design Control scheme, schematic, enclosure, and panel layout.
- 03 Build and bench-test Wired, labeled, and tested in our Connecticut shop.
- 04 Ship and support Documentation with the unit and an engineer on the phone.

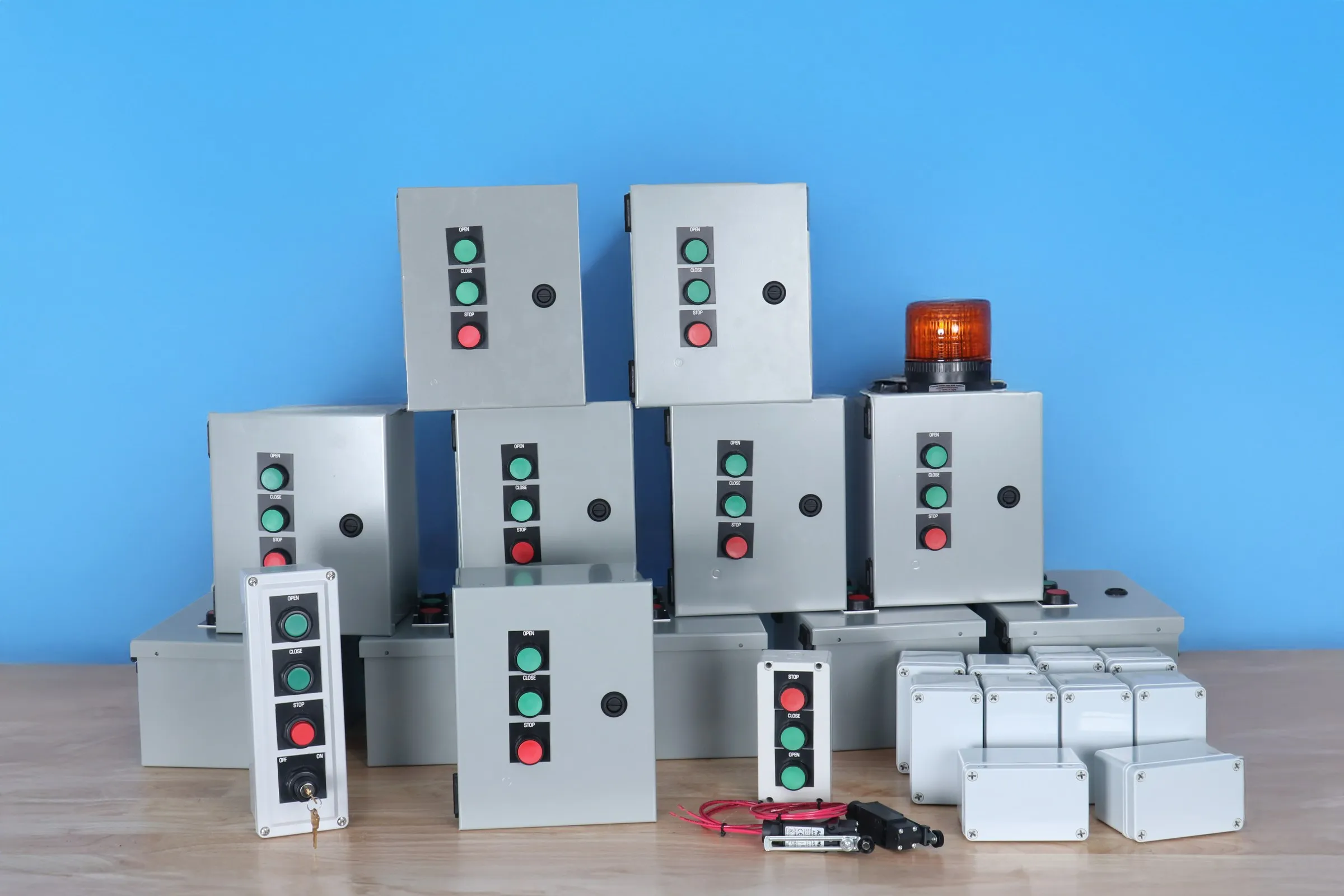

What goes into a system
Each of these is configured for the project — layout, components, ratings, and labeling.

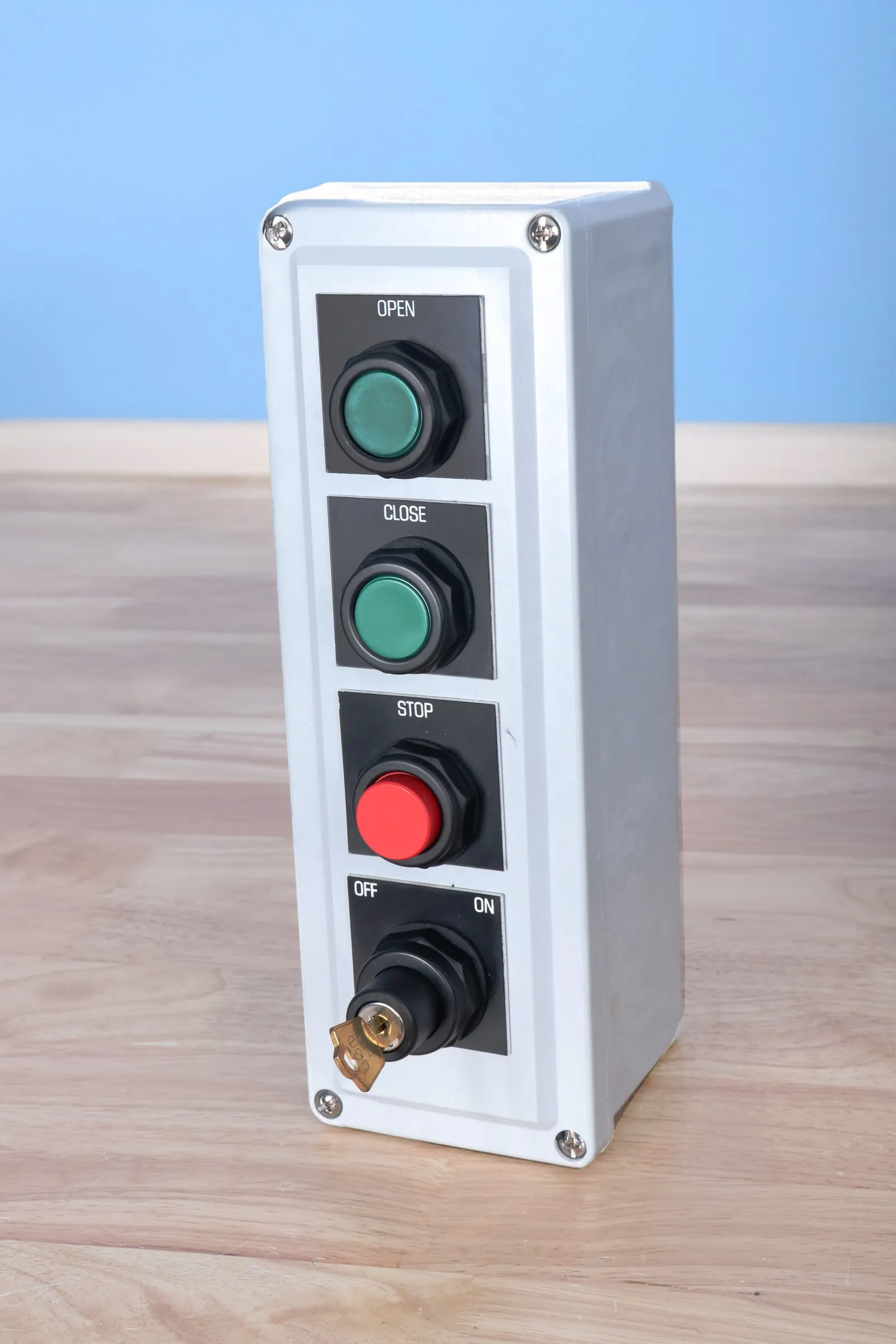

Remote Push Button Station
Configurable remote push button stations for local equipment operation, interlocks, stop circuits, and integration with new or existing control systems.
Configuration options

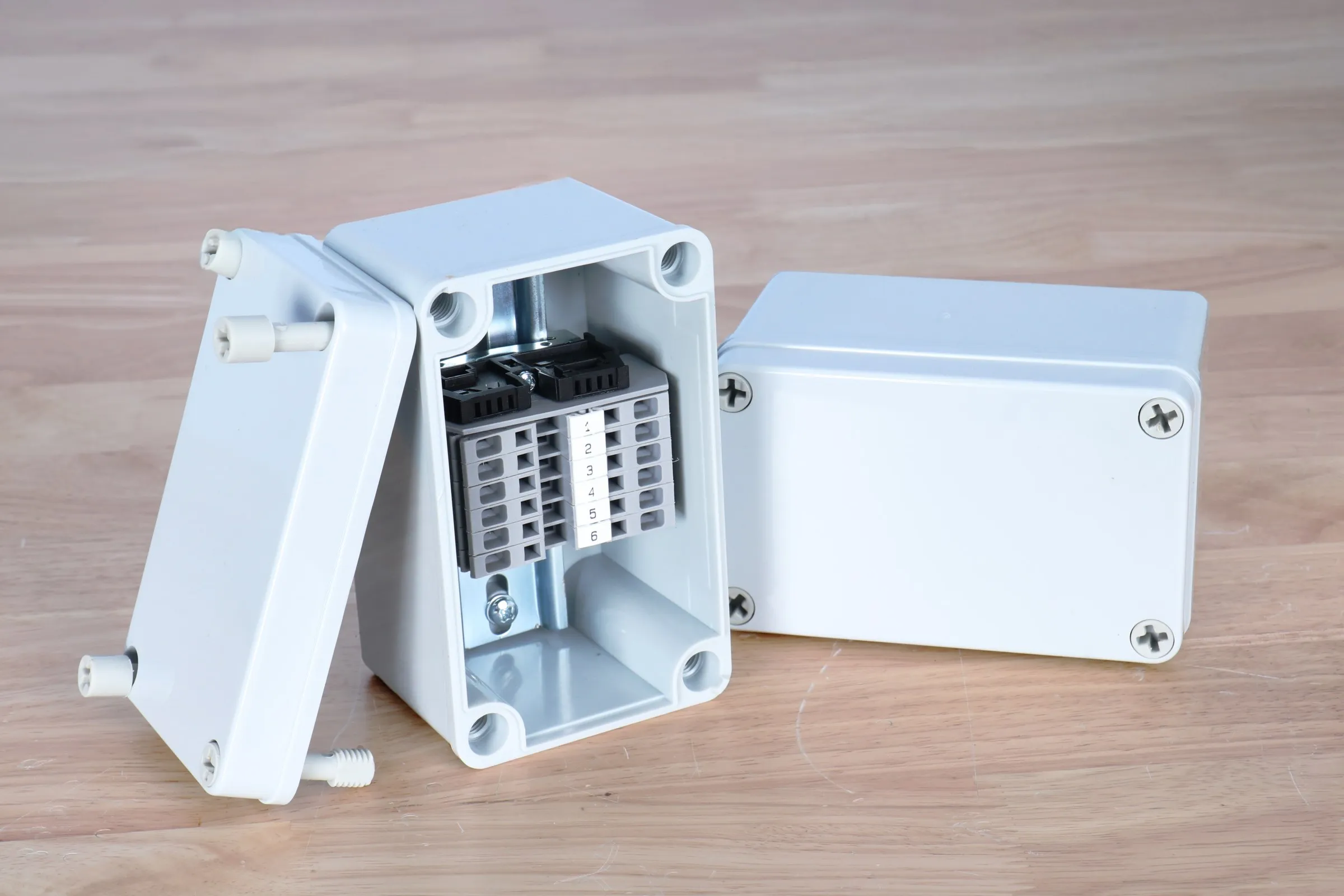

Custom Junction Boxes
Custom junction boxes with organized terminal blocks, labeling, cable-entry planning, and enclosure options for industrial field wiring.
Configuration options
Complete Motorized Systems
120VAC actuators, control panel, and remote station designed, wired, and bench-tested together as one system.
Systems and kitsAlso: PLC/HMI programming, retrofits and troubleshooting, and system integration.
In the field
Proven on real installations

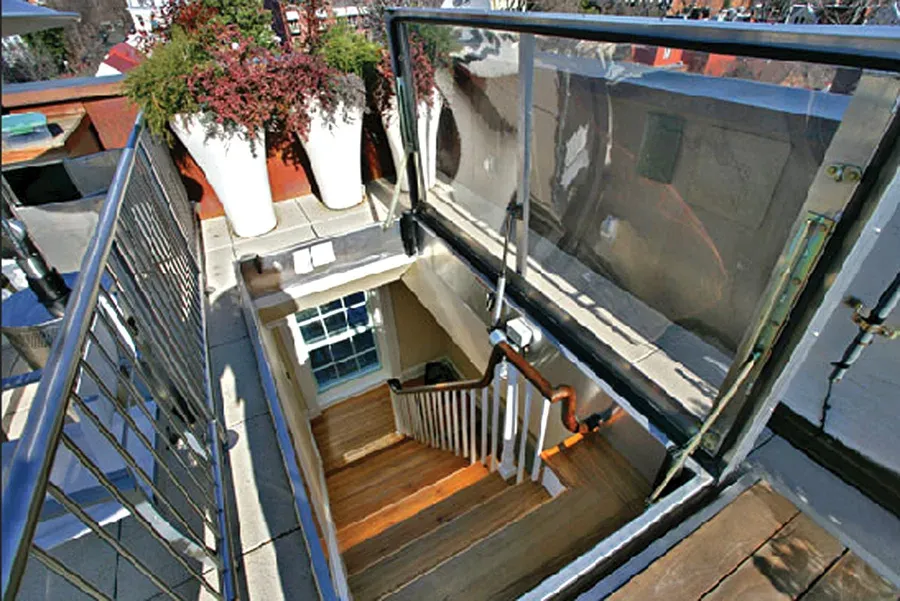

Residential Rooftop Access Boston Rooftop Patio Transparent Roof Hatch View installation examples Smart Engineering Solutions has been supplying Bilco with motor control systems for our motorized access products for several years. Their reliability is consistent, their quality is evident in every unit, and they've always been willing to adapt to our specific requirements. A dependable partner.
Ready to Discuss Your Project?
Whether you need a single control panel or a complete system integration, we're here to help you find the right solution.
